Frame:OCLV 900 Series carbon, internal cable routing, frame-integrated bag mounts, T47, integrated chain guide, mudguard mounts, flat-mount disc, UDH 142x12mm thru-axle
Fork:Domane SLR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, carbon dropouts, 12x100mm thru-axle
Weight: ML – 6.63 kg / 14.62 lbs (with inner tubes)
Weight limit: This model has a maximum total weight limit (combined weight of bike, rider and load) of 125 kg.
Electronics:SRAM AXSbattery(with charger)
Shifter:SRAM RED AXS E1
Front derailleur:SRAM RED AXS E1, to be brazed

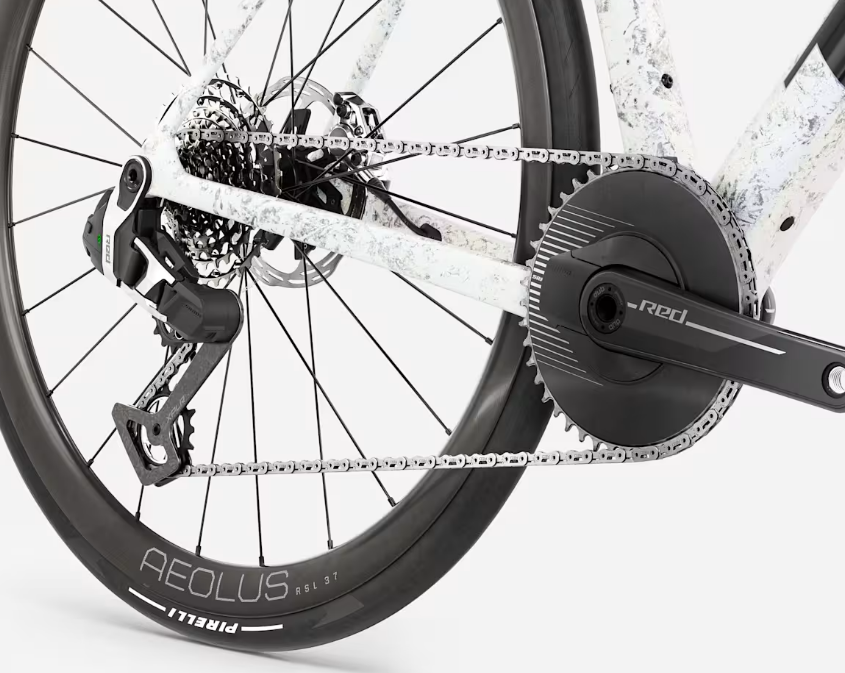

Rear derailleur: SRAM RED XPLR eTap AXS, max 46T sprocket
*Crankset
Size: XS, S
SRAM RED, power meter, 44T, DUB, length 160mm
Size: M, ML
SRAM RED, power meter, 44T, DUB, length 165mm
Size: L, XL
SRAM RED, power meter, 44T, DUB, length 170mm
Bottom bracket:SRAM DUB, threaded T47, internal bearing
Cassette: SRAM XG-1391, 10–46 teeth, 13-speed
Chain:SRAM RED E1, 12/13-speed
Max. chainring size:See the maintenance manual
Front wheel:Bontrager Aeolus RSL 37, OCLV carbon, Tubeless Ready, 37mm rim profile, 100x12mm thru-axle
Rear wheel:Bontrager Aeolus RSL 37, OCLV carbon, Tubeless Ready, 37mm rim profile, 142x12mm thru-axle
Front quick-release:Bontrager Switch bevelled thru-axle
Rear quick-release:Bontrager Switch bevelled thru-axle, removable lever
Tyre: Pirelli P Zero Race RS, 120 tpi, 700x28mm
Inner tube:Pirelli P Zero SmarTube, TPU
Max. tyre width:40mm (measured; see manual for details)
Saddle: Aeolus RSL AirLoom, carbon rails, width 145mm
Seatpost: Bontrager RSL carbon, 27.2mm, 5mm offset

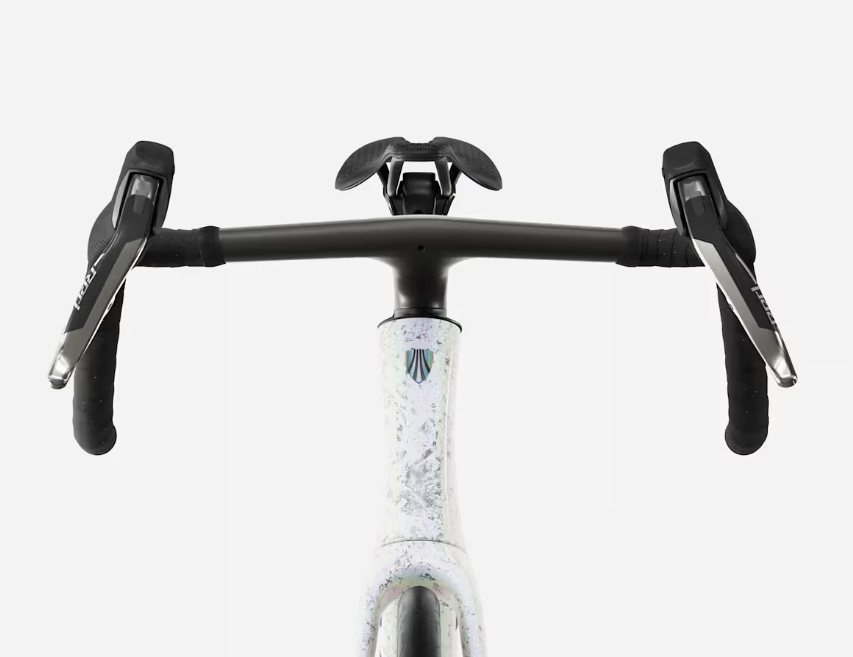

*Integrated handlebars/stem
Trek Aero RSL Road, OCLV carbon, reach 80mm, drop 124mm, control width 35cm, drop width 38cm, stem length 80mm
Size: S
Trek Aero RSL Road, OCLV carbon, reach 80mm, drop 124mm, control width 37cm, drop width 40cm, stem length 90mm
Size: M
Trek Aero RSL Road, OCLV carbon, reach 80mm, drop 124mm, control width 39cm, drop width 42cm, stem length 90mm
Size: ML, L
Trek Aero RSL Road, OCLV carbon, reach 80mm, drop 124mm, control width 39cm, drop width 42cm, stem length 100mm
Size: XL
Trek Aero RSL Road, OCLV carbon, reach 80mm, drop 124mm, control width 41cm, drop width 44cm, stem length 110mm
Handlebar tape:Trek gel-infused cork
*Handlebar stem
Size: XS
Trek RCS Pro, -7 degrees, length 80mm
Size: S
Trek RCS Pro, -7 degrees, length 90mm
Size: M
Trek RCS Pro, -7 degrees, length 100mm
Size: ML, L
Trek RCS Pro, -7 degrees, length 110mm
Size: XL
Trek RCS, -7 degrees, length 120mm
Brake rotor:SRAM Paceline X, rounded, centre-lock, 160mm
Disc size:Maximum brake rotor size: Front 180mm, rear 160mm
Sizes
| Size | Rider height | Inseam |
|---|---|---|
| XS (47 cm) |
143 – 158 cm 4’8″ – 5’2″ |
67 – 74 cm 26″ – 29″ |
| S (50 cm) |
158 – 162 cm 5’2″ – 5’4″ |
74–76 cm 29″ – 30″ |
| M (52–54 cm) |
162–173 cm 5’4″ – 5’8″ |
76–81 cm 30″ – 32″ |
| ML (56 cm) |
173 – 179 cm 5’8″ – 5’10” |
81–84 cm 32″ – 33″ |
| L (58 cm) |
179–188 cm 5’10” – 6’2″ |
84–88 cm 33″ – 35″ |
| XL (60–62 cm) |
188 – 213 cm 6’2″ – 7’0″ |
88–100 cm 35″ – 39″ |
Geometry
| Frame size letter | Wheel size | A —Seattube | B —Seat tubeangle | C —Head tubelength | D —Head tubeangle | E —Effective toptube | G —Bottom bracketdrop | H —Chainstaylength | I — Offset | J — Trail | K — Wheelbase | L — Standoverheight | M —Framereach | N — Frameheadtube | Front centre |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 700c | 44.4 | 73.5° | 10.6 | 71.3° | 52.0 | 8.0 | 42.0 | 5.3 | 6.2 | 98.7 | 72.1 | 36.8 | 52.4 | 58.0 |
| S | 700c | 47.6 | 73.7° | 13.9 | 71.1° | 53.0 | 8.0 | 42.0 | 5.3 | 6.3 | 100.2 | 75.3 | 37.1 | 55.5 | 59.5 |
| M | 700c | 50.0 | 73.5° | 15.9 | 71.2° | 54.1 | 8.0 | 42.0 | 5.3 | 6.3 | 101.1 | 77.5 | 37.4 | 57.5 | 60.4 |
| ML | 700c | 53.3 | 73.3° | 17.0 | 71.9° | 55.3 | 7.8 | 42.0 | 4.8 | 6.3 | 101.0 | 80.5 | 37.7 | 59.6 | 60.2 |
| L | 700c | 55.3 | 73.3° | 19.2 | 72.0° | 56.2 | 7.8 | 42.0 | 4.8 | 6.3 | 101.9 | 82.6 | 38.0 | 61.8 | 61.1 |
| XL | 700c | 59.3 | 73.3° | 22.6 | 72.1° | 57.5 | 7.5 | 42.0 | 4.8 | 6.2 | 103.3 |
