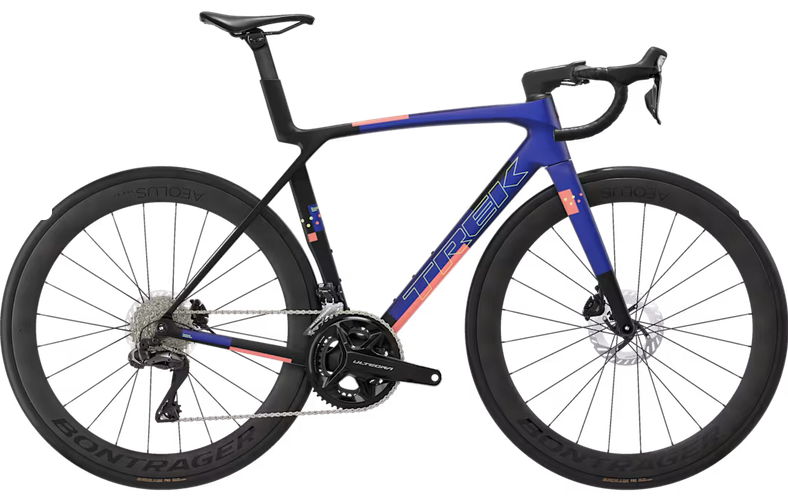

Trek Madone SL 7 Gen 8 Matte Cobalt Blue, Trek Black, Living Coral

Frame: OCLV 500 Series carbon, Full System Foil tube profiles, IsoFlow seat tube, RCS headset, cable routing for electronic or mechanical derailleurs, removable aero chainstay, T47 bottom bracket, flat-mount disc brakes, UDH, 142x12mm thru-axle

Fork: Madone Gen 8 full carbon, carbon tapered steerer tube, internal brake routing, flat-mount disc, 12x100mm chamfered thru-axle

Weight: ML – 7.87 kg/17.36 lbs (with TLR sealant, without inner tube)

Weight limit: This model has a maximum total weight limit (combined weight of bike, rider and load) of 125 kg.

Shifters: Shimano Ultegra R8170 Di2, 12-speed

Front derailleur: Shimano Ultegra R8150 Di2, to be brazed, downward swing

Rear derailleur: Shimano Ultegra R8150 Di2, max 34T sprocket

*Crankset
Sizes: XS, S, M, ML
Shimano Ultegra R8100, 50/34, 165mm length
Sizes: XS, S
Shimano Ultegra R8100, 50/34, 160mm length
Sizes: M, ML, L, XL
Shimano Ultegra R8100, 50/34, 170mm length
Sizes: L, XL
Shimano Ultegra R8100, 50/34, 172.5mm length

Bottom bracket: Praxis, T47 threaded, internal bearing

Cassette: Shimano Ultegra R8101, 11-34, 12-speed

Chain: Shimano XT M8100, 12-speed

Max. chainring size: 1x: 54T, 2x: 56/43

Front wheel: Bontrager Aeolus Pro 51, OCLV carbon, Tubeless Ready, 100x12mm thru-axle

Rear wheel: Bontrager Aeolus Pro 51, OCLV carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12mm thru-axle

Front quick-release: Bontrager Switch bevelled quick-release skewer

Rear quick-release: Bontrager Switch bevelled quick-release skewer, removable lever

*Tyre
Sizes: XS, S, M, ML, L, XL
Bontrager Aeolus Pro, tubeless-ready, aramid bead, 120 tpi, 700×28 mm
Sizes: XS, S, M, ML, L, XL
Bontrager R3 Hard-Case Lite, tubeless-ready, aramid bead, 170 tpi, 700x28mm
Max. tyre dimensions
32mm (measured; see manual for details)

Saddle: Bontrager Aeolus Elite, austenitic rails, width 145mm

Seatpost: Madone aero carbon seatpost, 0mm offset, short

*Handlebar
Size: XS
Bontrager Aero Pro, OCLV carbon, 31.8mm, Di2 routing, reach 80mm, drop 124mm, control width 35cm, width 38cm
Size: S
Bontrager Aero Pro, OCLV carbon, 31.8mm, Di2 cable routing, reach 80mm, drop 124mm, grip width 37cm, width 40cm
Size: M, ML, L
Bontrager RSL Aero, OCLV carbon, 31.8mm, Di2 cable routing, reach 80mm, drop 124mm, handlebar width 39cm, drop width 42cm
Sizes: M, ML, L
Bontrager Aero Pro, OCLV carbon, 31.8mm, Di2 cable routing, reach 80mm, drop 124mm, control width 39cm, width 42cm
Sizes: XL
Bontrager Aero Pro, OCLV carbon, 31.8mm, Di2 cable routing, reach 80mm, drop 124mm, control width 41cm, drop width 44cm

*Handlebar tape
Sizes: XS, S, M, ML, L, XL
Trek gel-infused cork
Sizes: XS, S, M, ML, L, XL
Trek EcoTack

*Handlebar stem
Size: XS
Trek RCS Pro, -7 degrees, length 80mm
Size: XS
Trek RCS, -7 degrees, length 80mm
Size: S, M
Trek RCS Pro, -7 degrees, length 90mm
Size: S, M
Trek RCS, -7 degrees, length 90mm
Size: ML, L
Trek RCS Pro, -7 degrees, length 100mm
Size: ML, L
Trek RCS, -7 degrees, length 100mm
Size: XL
Trek RCS Pro, -7 degrees, length 110mm
Size: XL
Trek RCS, -7 degrees, length 110mm

Brake rotor: Shimano CL800, centre-lock, 160mm

Disc size: Maximum brake rotor size: 180mm front, 160mm rear

Size	Rider height	Inseam
XS (47 cm)	143 – 158 cm 4’8″ – 5’2″	67 – 74 cm 26″ – 29″
S (50 cm)	158 – 162 cm 5’2″ – 5’4″	74–76 cm 29″ – 30″
M (52–54 cm)	162–173 cm 5’4″ – 5’8″	76–81 cm 30″ – 32″
ML (56 cm)	173 – 179 cm 5’8″ – 5’10”	81–84 cm 32″ – 33″
L (58 cm)	179–188 cm 5’10” – 6’2″	84–88 cm 33″ – 35″
XL (60–62 cm)	188 – 213 cm 6’2″ – 7’0″	88–100 cm 35″ – 39″
