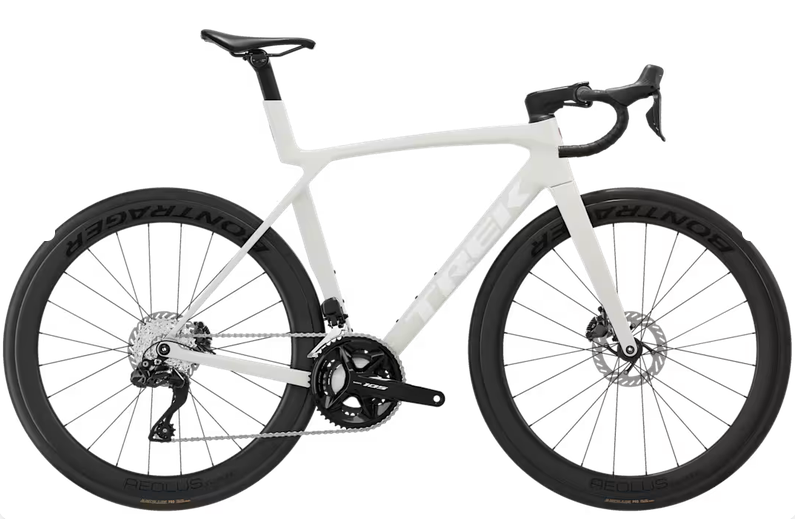

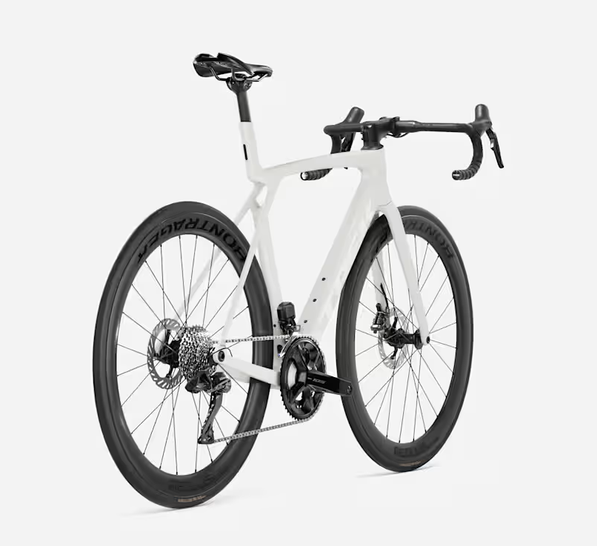

Trek Madone SL 6 Gen 8 Era White

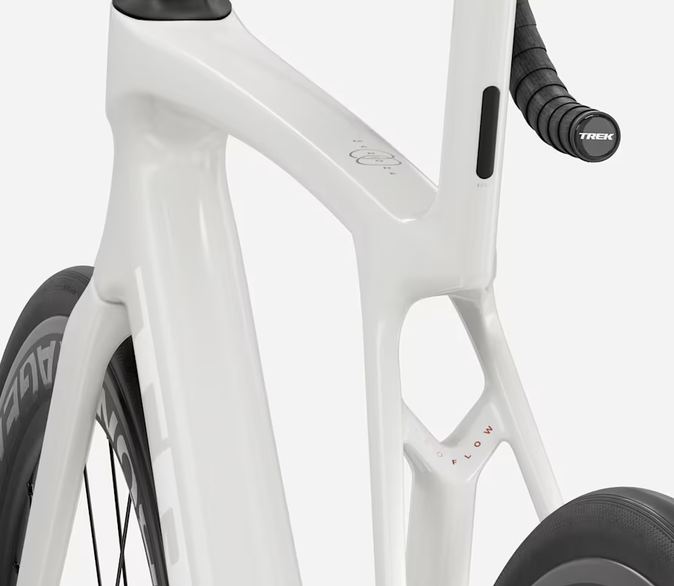

Frame: OCLV 500 Series carbon, Full System Foil tube profiles, IsoFlow seat tube, RCS headset, cable routing for electronic or mechanical derailleurs, removable aero chainstay, T47 bottom bracket, flat-mount disc brakes, UDH, 142x12mm thru-axle

Fork: Madone Gen 8 full carbon, carbon tapered steerer, internal brake routing, flat-mount disc, 12x100mm chamfered thru-axle

Weight: ML – 8.16kg/17.99lbs (with TLR sealant, without inner tube)

Weight limit: This model has a maximum total weight limit (combined weight of bike, rider and load) of 125kg.

Battery: Shimano BT-DN300

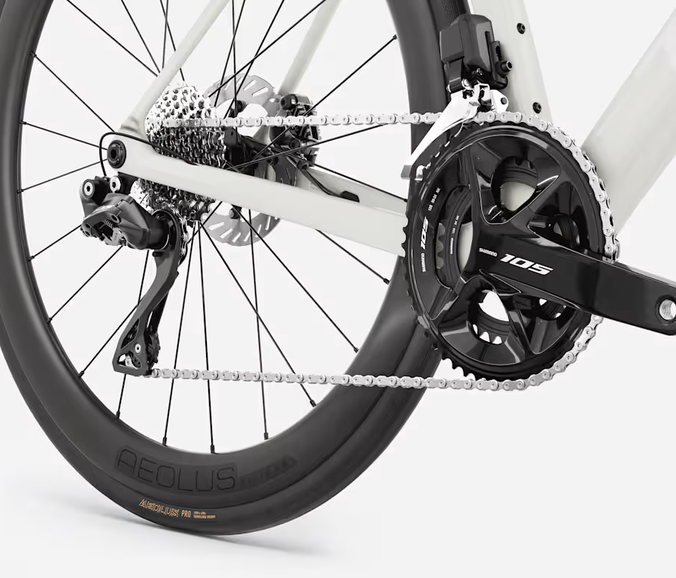

Front derailleur: Shimano 105 R7150 Di2, to be brazed, low cage

Rear derailleur: Shimano 105 R7150 Di2, max 36T sprocket

*Crankset
Size: M, ML
Shimano 105 R7100, 50/34, length 165 mm
Size: L, XL
Shimano 105 R7100, 50/34, length 170 mm

Bottom bracket: Praxis , T47 threaded, internal bearing

Cassette: Shimano 105 7101, 11-34, 12-speed

Chain: Shimano SLX M7100, 12-speed

Max. chainring size: 1x: 54T, 2x: 56/43

Front wheel: Bontrager Aeolus Elite 50, OCLV carbon, Tubeless Ready, 100x12mm thru-axle

Rear wheel: Bontrager Aeolus Elite 50, OCLV carbon, Tubeless Ready, 50mm rim profile, Shimano 11-speed freehub, 142x12mm thru-axle

Front quick-release: Bontrager Switch bevelled thru-axle

Rear quick-release: Bontrager Switch bevelled thru-axle, removable lever

Tyre: Bontrager Aeolus Pro, tubeless-ready, aramid bead, 120 tpi, 700x28mm

Tyre sealant: Bontrager TLR sealant, 6oz

Tyre valve: Bontrager TLR

Max. tyre width: 32mm (measured; see manual for details)

Saddle: Bontrager Aeolus Elite, austenitic rails, width 145mm

Seatpost: Madone aero carbon seatpost, 0mm offset, short

*Handlebar
Size: XS
Bontrager Comp, alloy, 31.8 mm, reach 80 mm, drop 121 mm, control width 36 cm, drop width 40 cm
Size: S, M
Bontrager Comp, alloy, 31.8 mm, reach 80 mm, drop 121 mm, control width 38 cm, drop width 42 cm
Size: ML, L
Bontrager Comp, alloy, 31.8 mm, reach 80 mm, drop 121 mm, control width 40 cm, drop width 44 cm
Size: XL
Bontrager Comp, alloy, 31.8 mm, reach 80 mm, drop 121 mm, control width 42 cm, drop width 46 cm

*Handlebar stem
Size: XS
Trek RCS Pro, -7 degrees, length 80mm
Size: XS
Trek RCS, -7 degrees, length 80mm
Size: S, M
Trek RCS, -7 degrees, length 90mm
Size: ML, L
Trek RCS, -7 degrees, length 100mm
Size: XL
Trek RCS, -7 degrees, length 110mm

Disc size: Max brake rotor size: 180mm front, 160mm rear

Size	Rider height	Inseam
XS (47 cm)	143 – 158 cm 4’8″ – 5’2″	67 – 74 cm 26″ – 29″
S (50 cm)	158 – 162 cm 5’2″ – 5’4″	74–76 cm 29″ – 30″
M (52–54 cm)	162–173 cm 5’4″ – 5’8″	76–81 cm 30″ – 32″
ML (56 cm)	173 – 179 cm 5’8″ – 5’10”	81–84 cm 32″ – 33″
L (58 cm)	179–188 cm 5’10” – 6’2″	84–88 cm 33″ – 35″
XL (60–62 cm)	188 – 213 cm 6’2″ – 7’0″	88–100 cm 35″ – 39″
